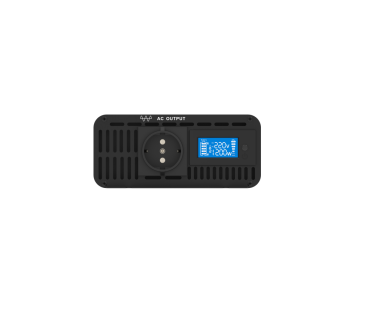

inverter2000W
Output Power 2000W
Display method LCD
Input voltage 12v/24v/48v/60v/72v
Input range 12v(10-15)，24v（20-30），48v（40-60），60v（50-75），72v（60-90）
Low voltage protection 12V(10.0V±0.3),24V(20.0V±0.3),48V(40.0V±0.3),60V(50.0V±0.3),72V(60.0V±0.3)
High voltage protection 12V(15.0V±0.3),24V(30.0V±0.3),48V(60.0V±0.3),60V(75.0V±0.3),72V(90.0V±0.3)
Recovery voltage 12V(12.8V±0.3),24V(25.6V±0.3),48V(51.0V±0.3),60V(65.0V±0.3),72V(78.0V±0.3)
No-load current 0.70A
Overload protection ≤130%
Output voltage 110Vac±10% or 220Vac±10%
Output frequency 50Hz±1Hz or 60Hz±1Hz
Output waveform Pure sine wave
Overheating protection 80°±5°
Waveform THD ≤3%THD
Conversion efficiency 90%
cooling method Fan cooling
Dimensions 360*173*76mm
Product weight 4.0kg
